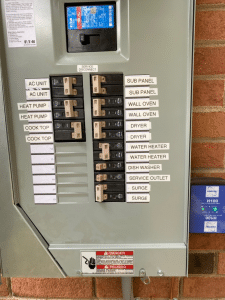

Labeling the Electrical Panel

Having a correctly labeled electrical panel is imperative for home safety. In emergencies such as fires or electrocutions, being able to quickly and accurately power off the circuit can be lifesaving. Most homes have a panel that is at least partially labeled, but minor renovations and changes in the home’s wiring over time could lead to incorrect labeling. Therefore, it’s essential to regularly check and update the labels on your electrical panel.

Importance of Proper Labeling

Correct labeling ensures that you can quickly identify and switch off the appropriate circuit during an emergency. This can prevent electrical fires from spreading and reduce the risk of electrocution when performing household repairs or maintenance.

Preparing for the Task

Determining circuits and labeling your panel can be time-consuming and is best done with a partner.

You will need:

  • A labeler
  • A notepad
  • A non-contact voltage tester or a small corded appliance for example, a small lamp.

Step-by-Step Process

  1. Turn on Electrical Devices: Begin by turning on as many lights, fans, and appliances as is safe. This will help you identify which circuit each device is connected to.
  2. Identify and Label Dedicated Circuits: At your panel, look for obvious dedicated appliance circuits such as those for a “Dryer” or “Oven,” which may already be labeled. Flip each breaker off one at a time and check if the correct appliance is now off. If it is, label that breaker clearly. Turn the breaker back on after labeling it.
  3. Label Remaining Breakers: For the remaining breakers, turn each one off individually. Check which lights go out and use your voltage tester or small appliance to test the outlets. This will help you establish the entire circuit that is now off. Label each breaker with a clear, distinct name for the circuit, such as “Right Back Bedroom & Hall.” Avoid using personal names like “Sue’s Room” since room assignments can change over time.

Tips for Effective Labeling

  • Use durable, easy-to-read labels that won’t fade over time.
  • Write legibly and ensure the labels are firmly attached.
  • Review and update your panel labels regularly, especially after any electrical work or renovations.
    Labeling is a small but vital task that can significantly enhance the safety of your home.

Getting Professional Help

If you find the task daunting or encounter any issues, don’t hesitate to call a professional. Incorrect labeling can lead to confusion and potential safety hazards. For assistance with labeling your panel or addressing any electrical concerns, call GB Electrical Services at 980-500-2378.

Proper labeling of your electrical panel is a small but vital task that can significantly enhance the safety of your home. Taking the time to ensure each breaker is correctly identified will provide peace of mind and quick action capability in emergencies.
